Horizontal Substructure

The substructure consists of vertical L-profiles anchored to the building with wall brackets. Horizontal aluminium rails are installed on the basic substructure. The distance depends on the height of the tiles which are fastened to the horizontal rails with aluminium clamps. Joint profiles are arranged in the vertical joints. This prevents lateral movement of the facade tiles and makes sure that the tiles sit securely in the clamps. In addition, water is prevented from penetrating the vertical joints.

Step 01

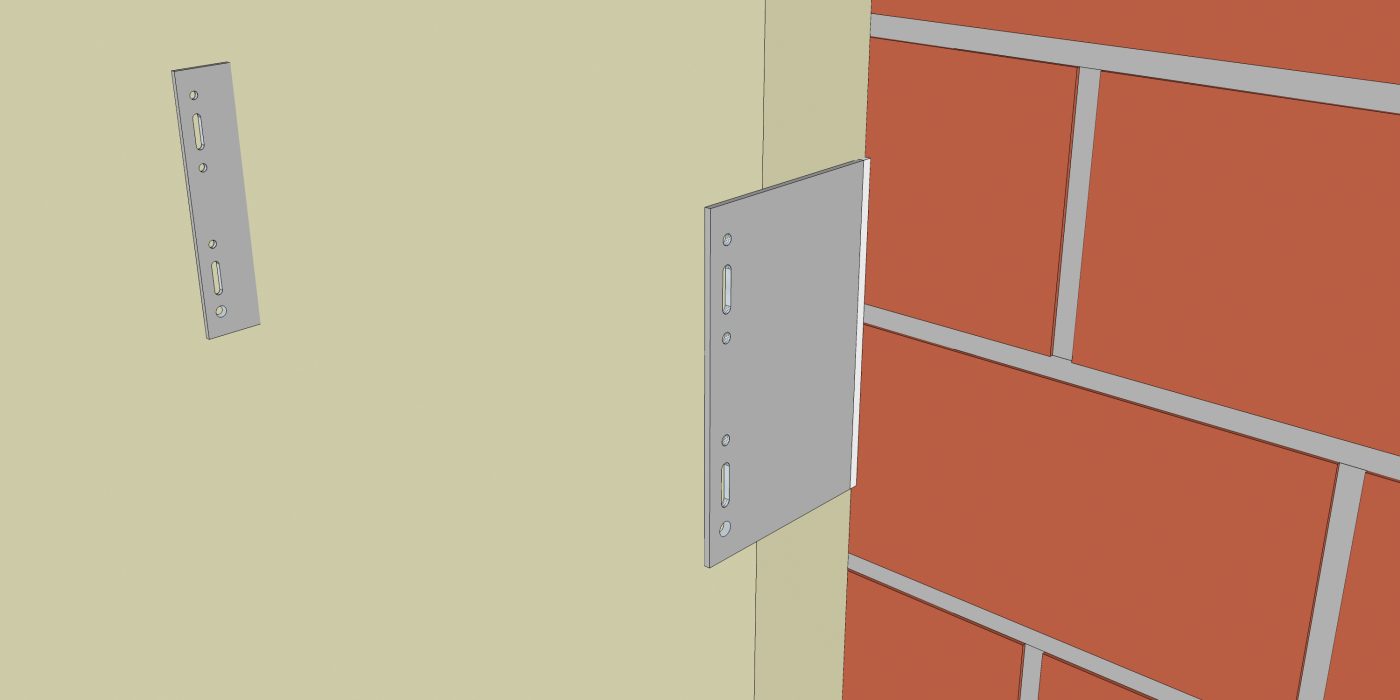

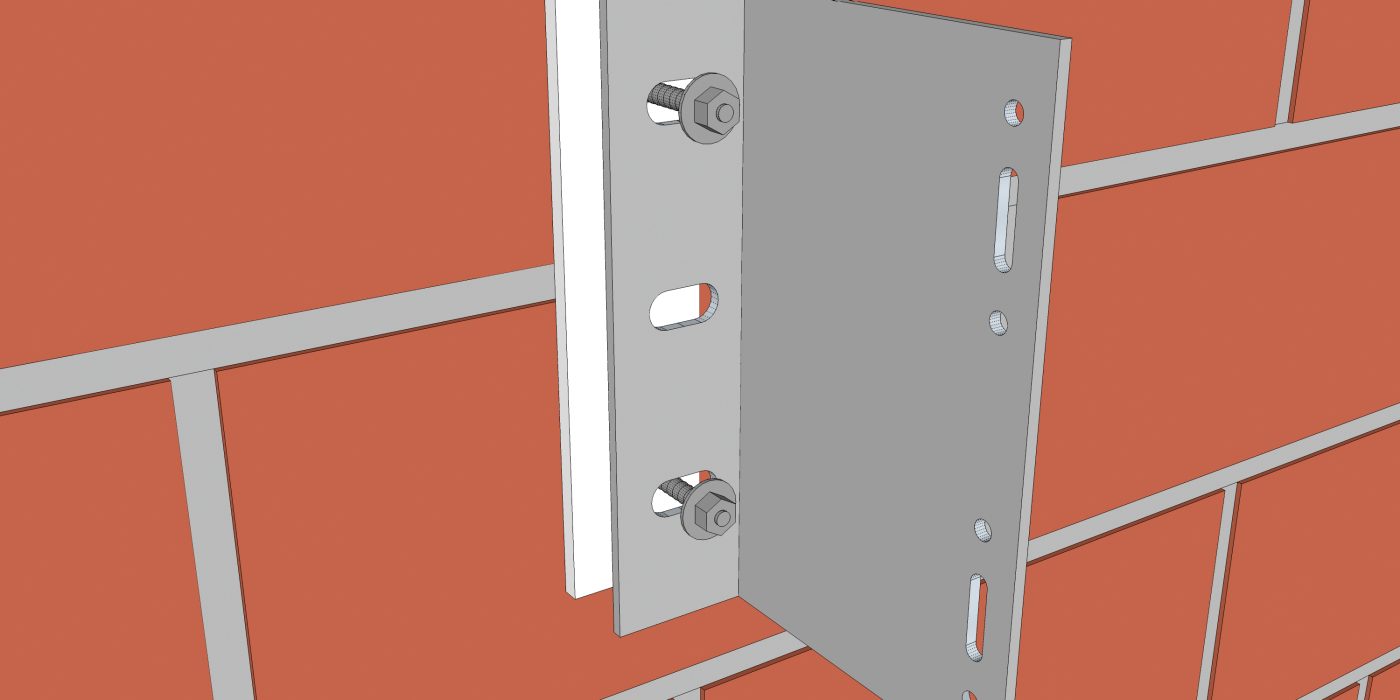

Anchoring of wall consoles

Step 02

Installation of thermal insulation

Step 03

Securing angular support profiles to the wall consoles

Step 04

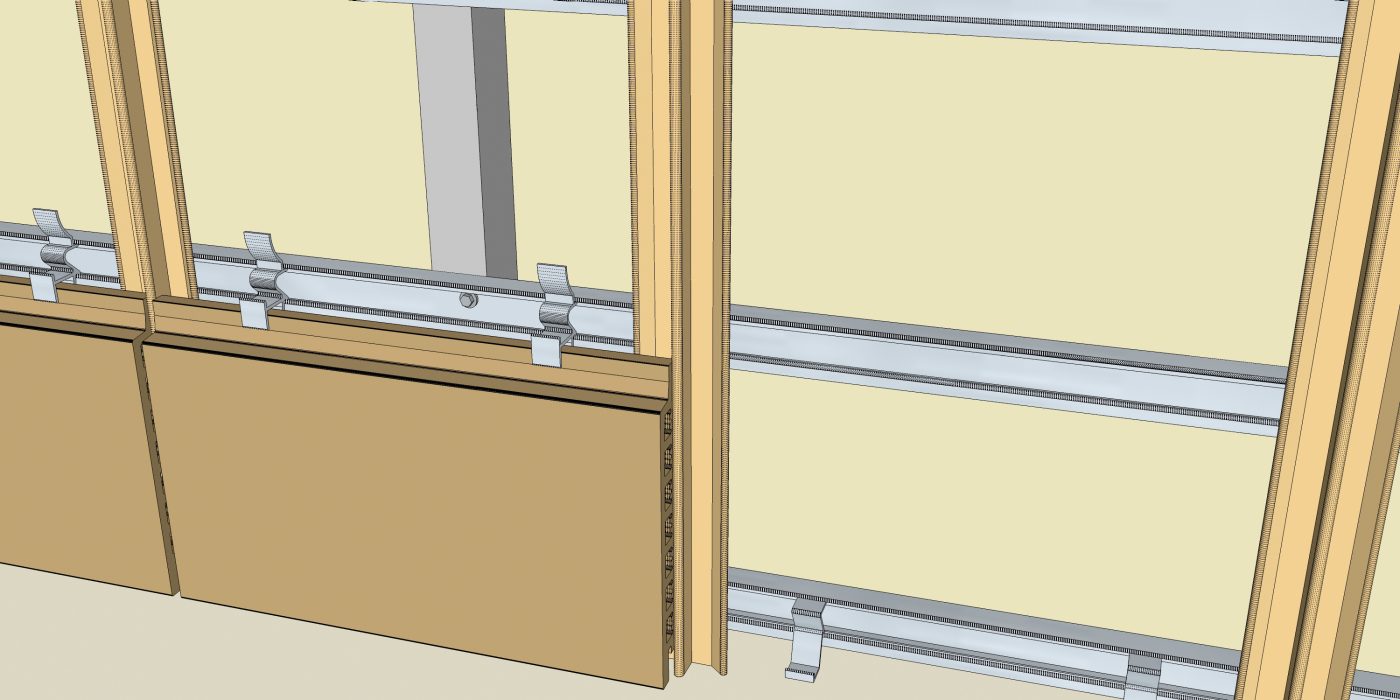

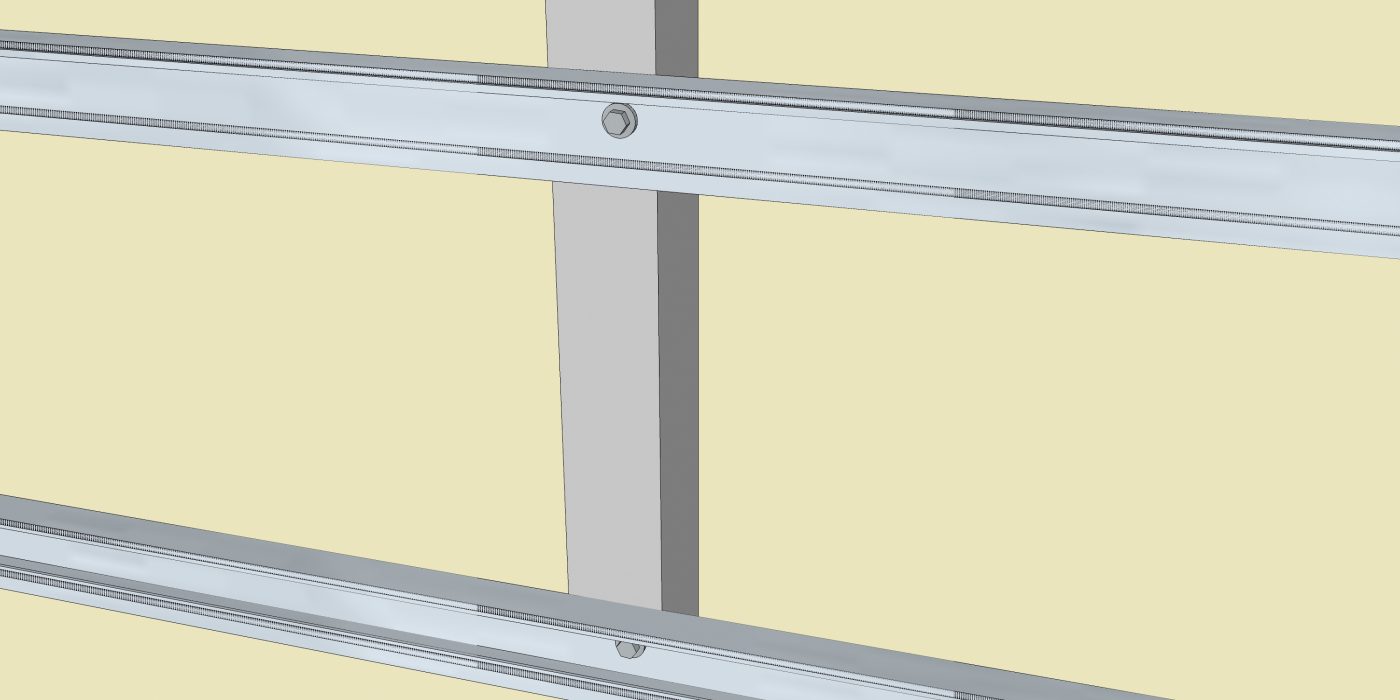

Installation of the horizontal profiles

Step 05

Installation of the first tile row with bottom clamps and fixing of joint profiles

Step 05

Installation of middle tile rows with middle clamps

Step 07

Installation of the top tile row

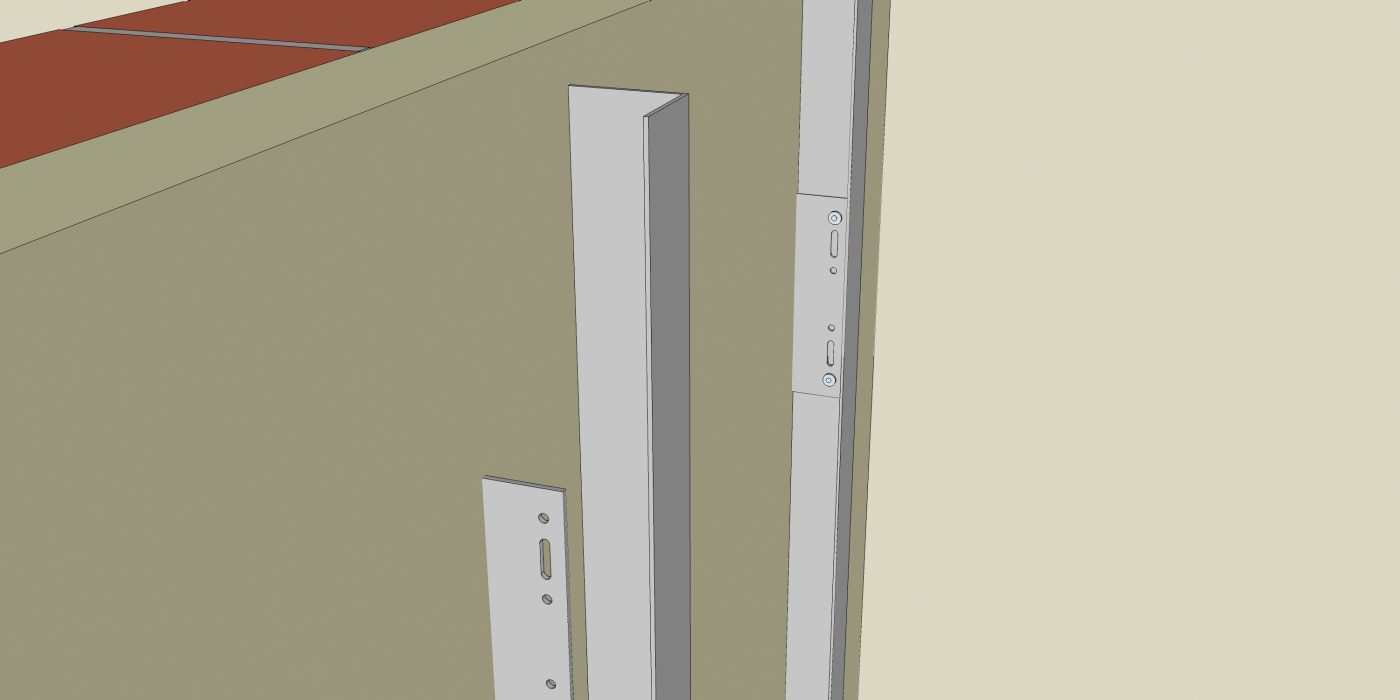

Substructure and insulation

For the vertical, basic substructure aluminium wall brackets are anchored in statically required intervals on the building wall. The arrangement of the basic substructure is independent of the height of the facade tiles. Afterwards, thermal insulation is applied to the previously cleaned surface of the wall. The choice of insulation material in each individual case depends on the property and its particular requirements. Vertical -profiles are aligned with the consoles and fastened with approved fasteners such as rivets or screws. The special horizontal Argeton support rails are fixed onto the vertical L-profiles.

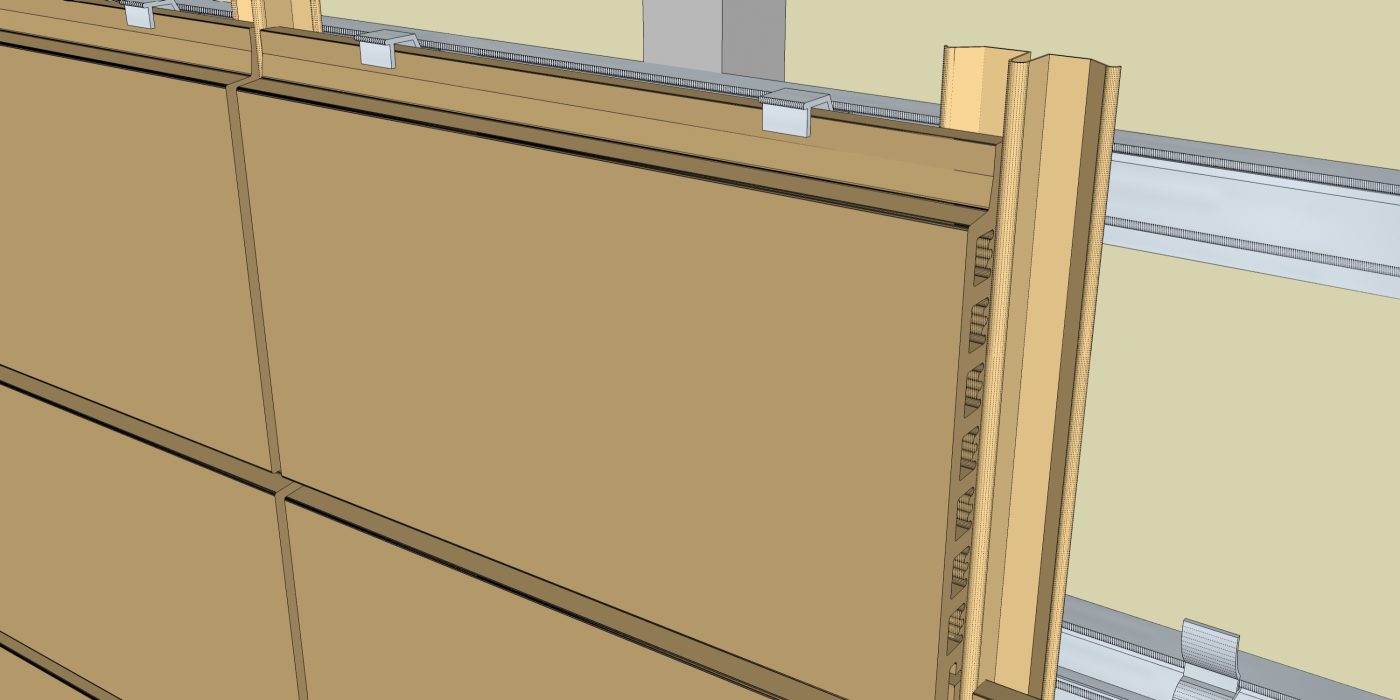

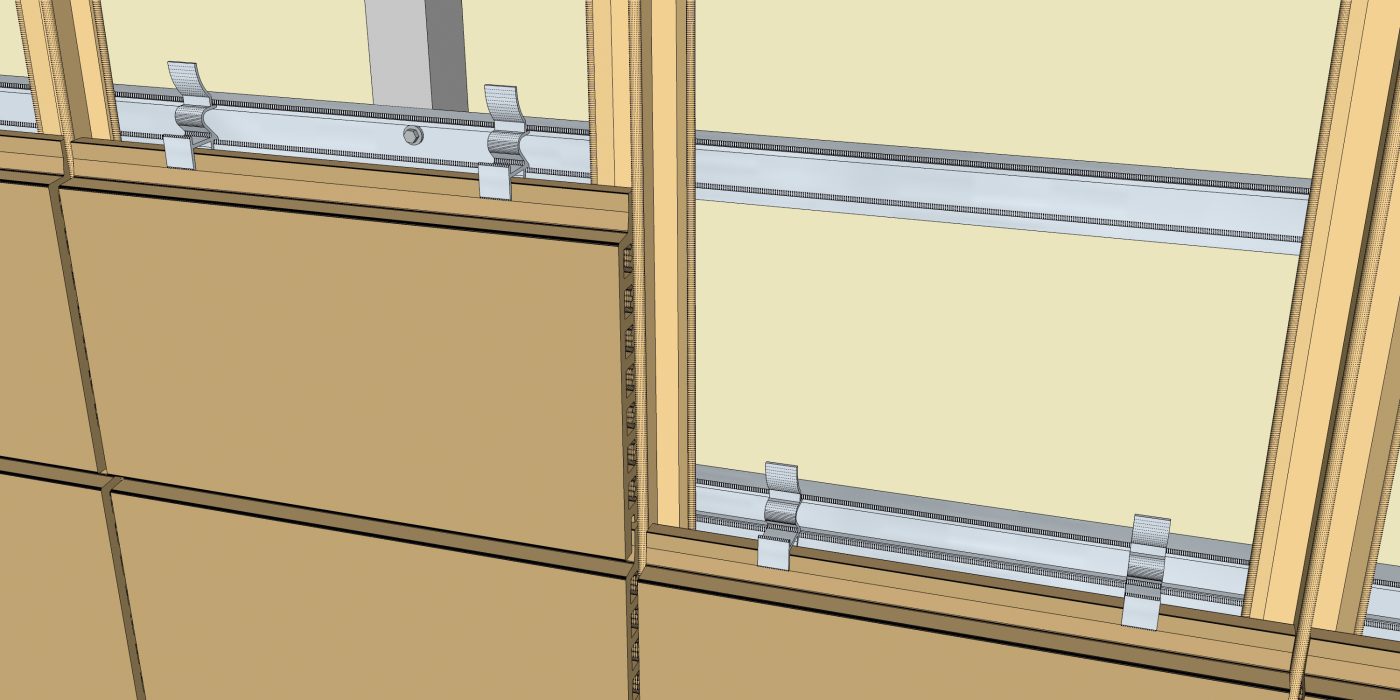

Installation of Argeton tiles

First, bottom clamps have to be fixed, always two per Argeton tile, into the horizontal rails. In a next step the tiles can be installed onto the clamps. The fixation of the tiles is carried out by putting the middle clamps into the next horizontal rail. This procedure has to be repeated for every tile row up to the top of the facade. The top row is to be fixed by special top clamps. The joint profiles have to be placed between the tiles as soon as the first tile row has been completed.
