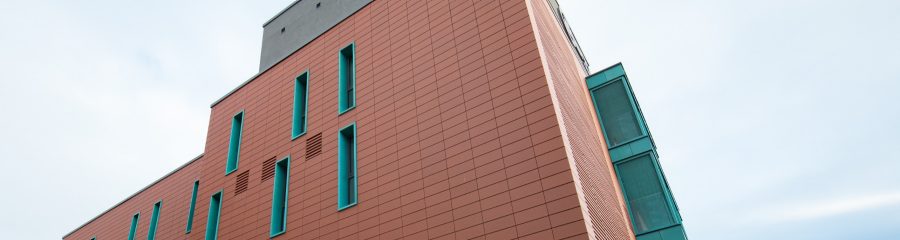

Vertical Substructure

The substructure consists of vertical T-profiles, anchored to the building with wall brackets. The Argeton tiles are to be fixed by aluminium clips in the vertical T-profiles. Joint profiles have to be placed in the vertical joints. This prevents lateral movement of the façade tiles and makes sure that the tiles sit securely in the clips. Also, water is prevented from penetrating the vertical joints.

Argeton Vertical Construction Anchoring of wall consoles
Step 01

Anchoring of wall consoles

Argeton Vertical Construction Installation of thermal insulation
Step 02

Installation of thermal insulation

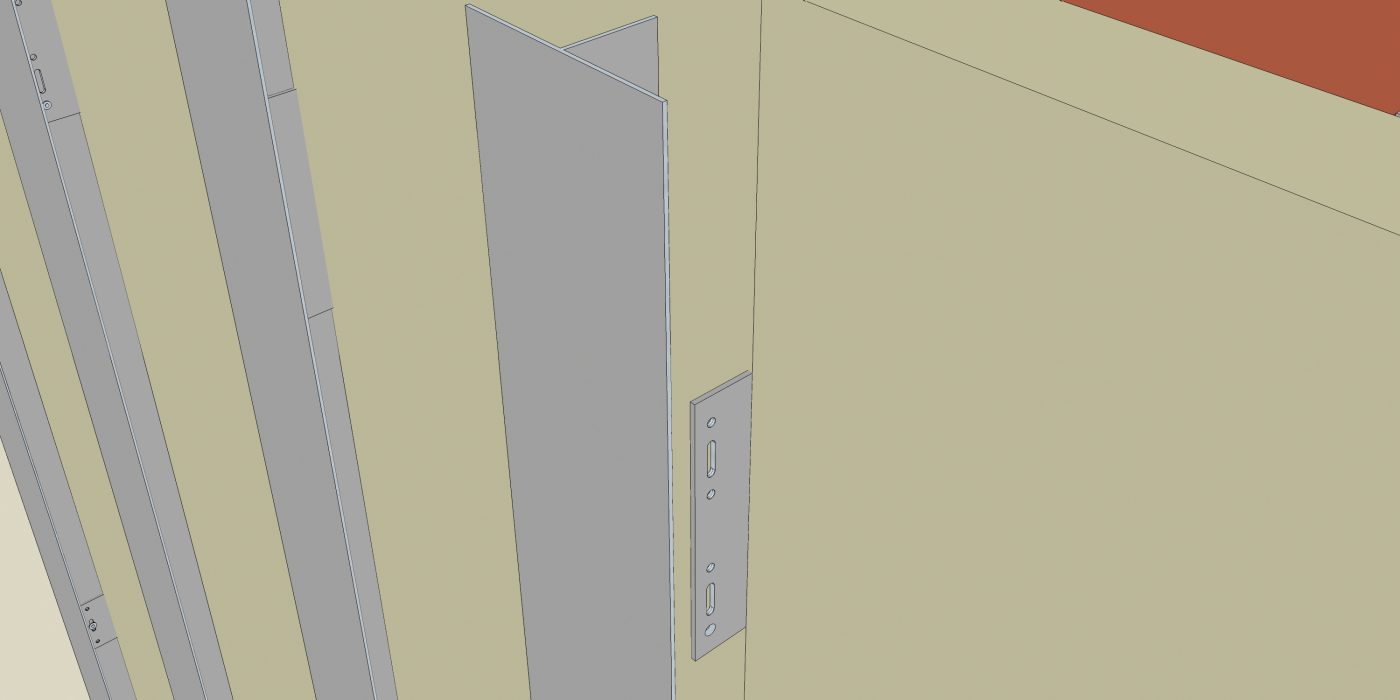

Argeton Vertical Construction Installation of aluminium T-profiles on wall consoles
Step 03

Installation of aluminium T-profiles on wall consoles

Argeton Vertical Construction Fixing the bottom clips
Step 04

Fixing the bottom clips

Argeton Vertical Construction Fixing the joint profiles
Step 05

Fixing the joint profiles

Argeton Vertical Construction Installation of the bottom tile row
Step 05

Installation of the bottom tile row

Argeton Vertical Construction Installation of middle tile rows with middle clips
Step 07

Installation of middle tile rows with middle clips

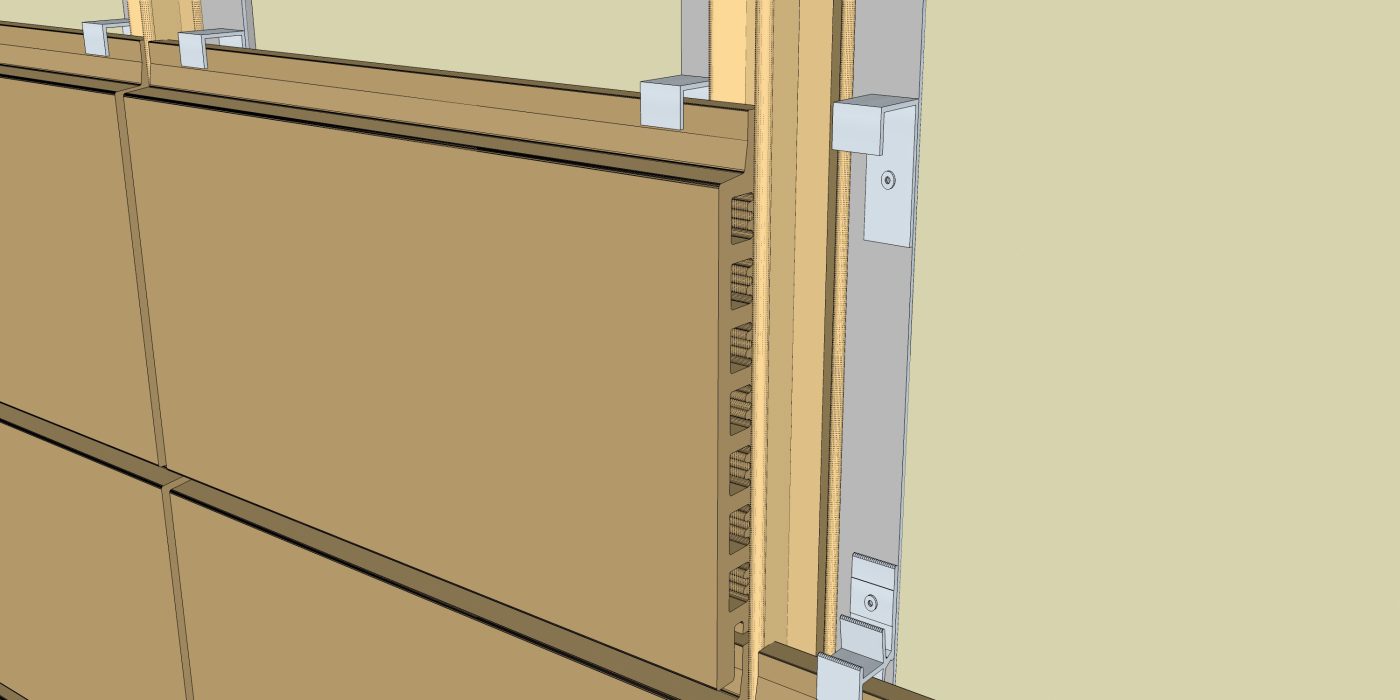

Argeton Vertical Construction Installation of the top tile row
Step 08

Installation of the top tile row

Substructure and insulation

For the vertical basic substructure aluminium wall brackets are anchored in statically required intervals on the building wall. Afterwards, thermal insulation is applied to the previously cleaned surface of the wall. The choice of insulation material in each individual case depends on the property and its particular requirements. The T-profiles are aligned with the consoles and fastened with approved fasteners such as rivets or screws.

Installation of Argeton tiles

First, the bottom clips have to be fixed, always two per Argeton tile, onto the T-profiles with blind rivets or screws. In a next step the tiles can be installed onto the clips. The fixation of the tiles is carried out by installing the middle clips onto the T-profile. This procedure has to be repeated for every row up to the top of the façade. The top row is to be fixed by a special top clip. The joint profiles have to be placed between the tiles as soon as the first tile row has been completed.
