Argeton tiles are extruded ceramic façade elements. After the firing process, they are cut to length in the pulling direction. Ceramic tiles are non-flammable according to DIN 4102-4 and EN 13501-1 (material class A1). Argeton tiles have high static qualities and are resistant to water and frost.
Form:
Wingity (out of plane):
±0.25% of the diagonal
Straightness (in the plane):
±0.25% of the length/height
Evenness (out of plane):
±0.25% of the length
±0.70% of the height
Angularity (in the plane):
tile height ≤ 300mm ± 1.0mm
tile height > 300mm ± 1.5mm
Maximum lengths, height and thickness can be obtained on request.
Weight (dry):
Bending strength:
Bearing capacity:
Water absorption:
Frost resistance:
Moisture expansion:
Acid resistance:
Base resistance:
approx. 42 kg/m²
≥ 2.0 g/cm³
bearing strength: 12-20 N/mm²
3 - 8%
acc. to test reports of Baustoffprüfstelle Wismar GmbH proven
approx. 0.03%
acc. to test reports of BAUTEST Dresden GmbH proven
acc. to test reports of BAUTEST Dresden GmbH proven
Form:
Wingity (out of plane):
±0.25 % of the diagonal
Straightness (in the plane):
±0.25 % of the length/height
Evenness (out of plane):
±0.25 % of the length
±0.70 % of the height
Angularity (in the plane):
± 1.0 mm
Maximum lengths, height and thickness can be obtained on request.
Weight (dry):
Bending strength:
Bearing capacity:
Water absorption:
Frost resistance:
Moisture expansion:
Acid resistance:
Base resistance:
approx. 31 kg/m²
≥ 2.0 g/cm³
bearing strength: 12-20 N/mm²
3 - 8 %
acc. to test reports of Baustoffprüfstelle Wismar GmbH proven
approx. 0.03%
acc. to test reports of BAUTEST Dresden GmbH proven
acc. to test reports of BAUTEST Dresden GmbH proven
Form:
Wingity (out of plane):
±0.25 % of the diagonal
Straightness (in the plane):
±0.25 % of the length/height
Evenness (out of plane):
±0.25 % of the length
±0.70 % of the height
Angularity (in the plane):
± 1.0 mm
Maximum lengths, height and thickness can be obtained on request.
Cross-section:
50x50mm, 50x80mm, 50x100mm, 50x150mm, 60x60mm, 69x69mm,
100x100mm (further cross-sections on request),
tolerance ± 1.0mm
Constancy of the form:
Flexion: longitudinal arch max. 3.0mm
Bending strength:
Bearing capacity:
Water absorption:
Frost resistance:
Moisture expansion:
Acid resistance:
Base resistance:
≥ 2.0 g/cm³
bearing strength: 12-20 N/mm²
3 - 8 %
acc. to test reports of Baustoffprüfstelle Wismar GmbH proven
approx. 0.03%
acc. to test reports of BAUTEST Dresden GmbH proven
acc. to test reports of BAUTEST Dresden GmbH proven

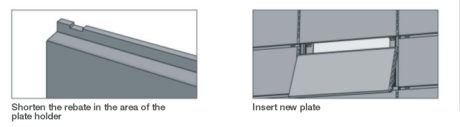

Subsequent installation of tiles, suitable for horizontal and vertical substructure.
The notch depth should be specified on site and max. about 4mm.
Argeton façades are almost maintenance-free. In case of impurity the type of pollution should first be clarified:
